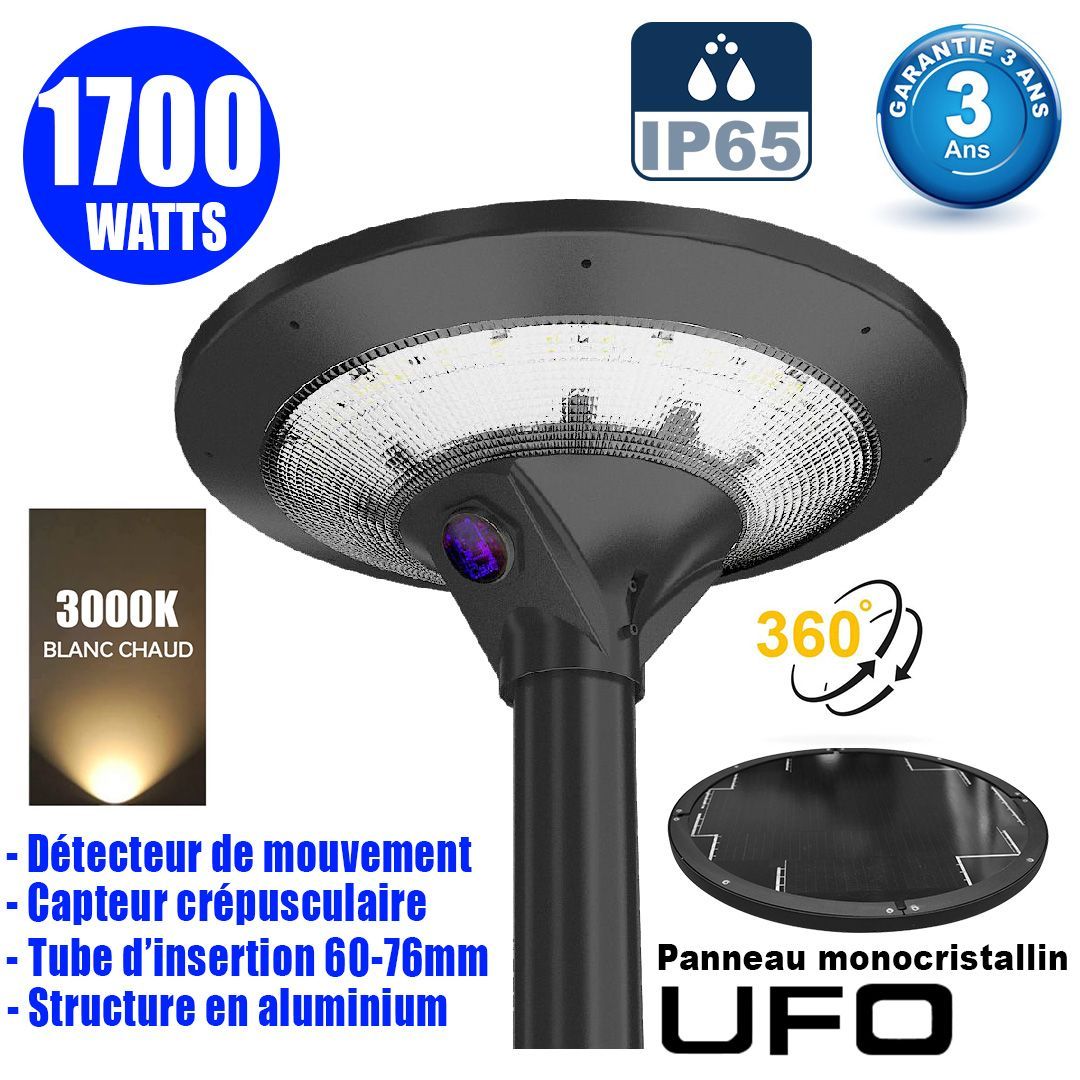

Solar outdoor lamp
UFO EVO Series
Luminous output 1700W

Spécifications techniques générales
Luminous rendering
Lumens
Angle
Rules
DA
Battery
Lighting color

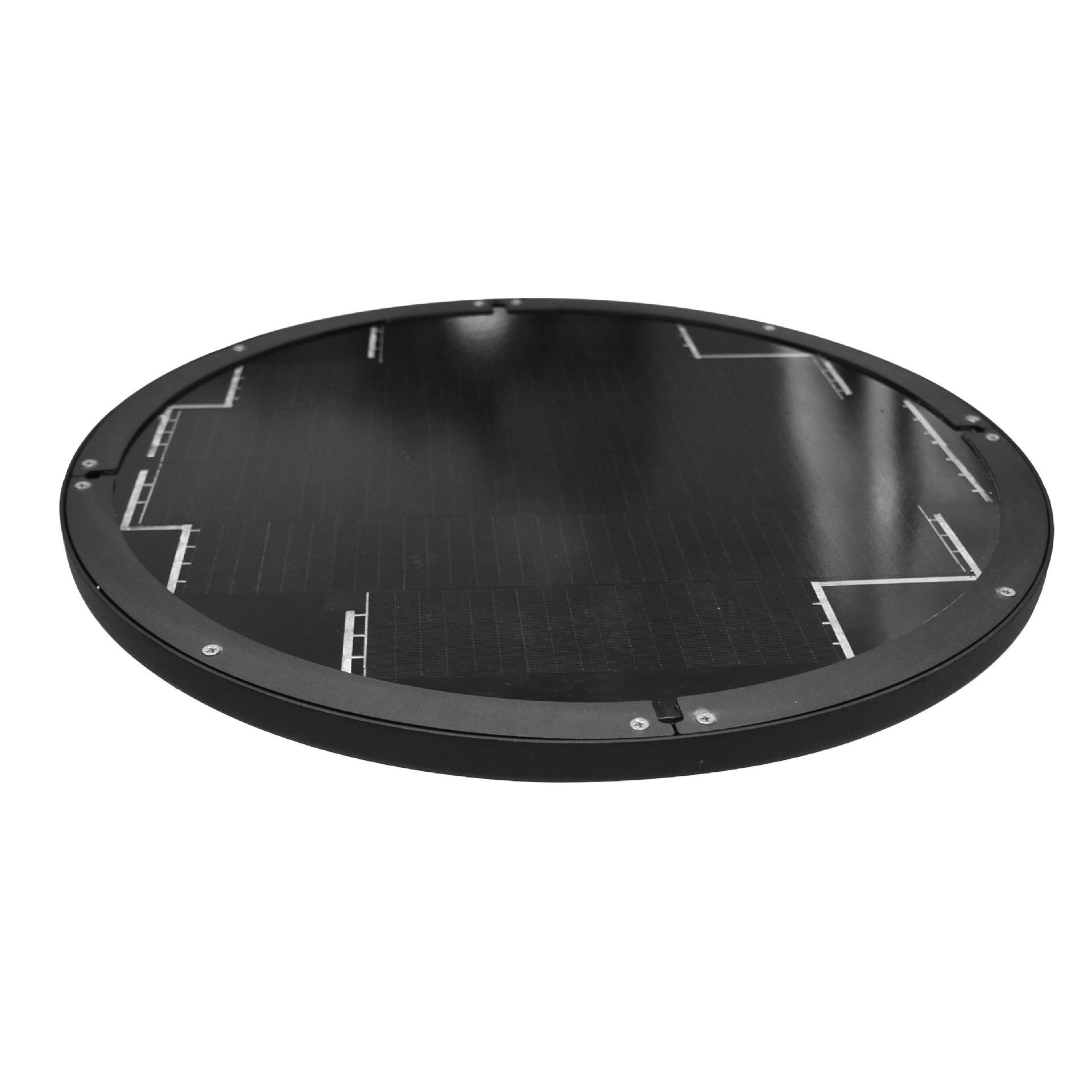

Solar panel
Fréquence
Type de LED
Name of LEDs
Motion detector
Detection distance
Detection angle
Insertion tube diameter
Programmed single mode
Charging duration
Lighting duration
(Full charge)
Operating temperature
Material
Certification
Weight
Guarantee
Technical Sheet
Mode of operation
1700 watts
5100 Lumens
360°
IP65
> 70
12,8V / 12Ah au Lithium fer phosphate
3000k / 6000k
16,5V / 31W – Monocristallin
50 - 60 HZ
SMD5050
32 pieces
Yes, but not programmable
10 meters
65°
60~76mm
- 1st half hour:
  • Without passage (standby): 15% brightness
  • People passing by: 50% brightness
- Next time:
  • Without passage (standby): 50% brightness
  • People passing: 100% brightness
- Next time:
  • Without passage (standby): 30% brightness
  • People passing by: 80% brightness
- Next time:
  • Without passage (standby): 15% brightness
  • People passing by: 70% brightness
- Next 2h30:

  • Without passage (standby): 15% brightness
  • People passing by: 30% brightness
- Next 6 hours:
  • Without passage (standby): 15% brightness
  • People passing by: 25% brightness
- Last variation (until daybreak or battery exhaustion):
  • Without passage (standby): 15% brightness
  • People passing by: 50% brightness
3 to 5 Hours
2 days (bad weather)
-20°C / 45°C
Aluminum alloy
CE & ROHS
6,2 kg
3 years
Fiche Technique PDF
Fiche Technique PDF
Luminous rendering
1700 Watts
Lumens
5100 Lumens
Angle
360 degrees
Rules
IP65
DA
> 70
Battery
12,8V / 12Ah au Lithium fer phosphate
Solar panel
16,5V / 31W – Monocristallin
Fréquence
50 - 60 Hz
Lighting color
3000k / 6000k
Material
Aluminum alloy
Charging duration
3 to 5 Hours
Lighting duration
2 days (bad weather)
Type de LED
SMD5050
LED Name
32 pieces
Motion detector
Yes, but not programmable
Detection distance
10 meters
Detection angle
65°
Operating temperature
-20°C / 45°C
Programmed single mode
- First 3 hours: 100% constant
- Next 2 hours: 50% constant
- Last 8 hours: 20% without passage, 100% with passage
Insertion tube diameter
60~76mm
Product dimensions
534 x 200 mm
Certification
CE & ROHS
Weight
6,2 kg
Guarantee
3 years
Technical Sheet
